UHD X_SH - Overview



Bridge UHD X_SH converts UHD 4k 12G-SDI signal (Standard Broadcasting 4k signal) to HDMI2.0 (up to 4K 60Hz HDMI signal) for the convenient use between Broadcasting Equipment and Commercial display such as UHD TV, monitor.



  • Specifications:

          Physical:

    • Power Level: 7V ~ 16 VDC
    • Power Consumption: 11.8 Watts (Max: 14 Watts)
    • Operating Temperature: 0°C ~ 55°C
    • Humidity: 0 to 95% RH, Non-condensing
    • Data Rate: Max 600Mhz
    • Signal Level: 800mVp-p +/- 80mV

      Digital Video Specs:
    • HD : 720p (60/59.94/50), 1080i (60/59.94/50), 1080p (23.98/24/25/29.97/30)
    • FHD : 1080p (60/59.94/50) , 1080p LevelB (60/59.94/50)
    • 2K4K : 2160p (23.98/24/25/29.97/30)
    • 4K : 2160p (60/59.94/50)

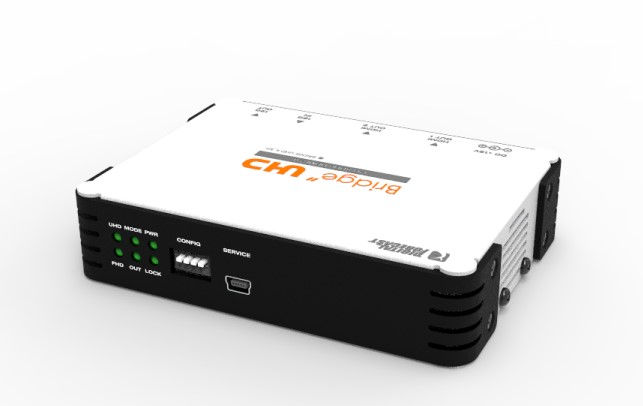

      Bridge UHD X_SH (12G SDI to HDMI2.0 Converter)

      SKU: UHD X_SH
      $725.00Price
        • Standard SDI (HD, 3G, 6G, 12G) format input supported
        • HDMI 2.0 (720p - 2160p) 4:4:4 6tp0Hz ouut

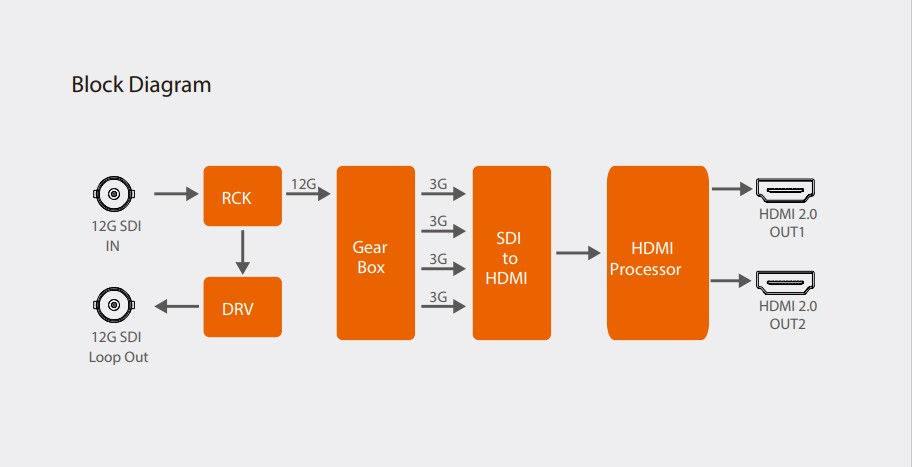

        • 1 x SDI input / 1 x SDI RCK output (Max 12G)
        • 2 x HDMI 2.0 output
        • HDMI output Intelligent Downconverter Inside ( Automatic UHD or FHD output using monitor EDID)
