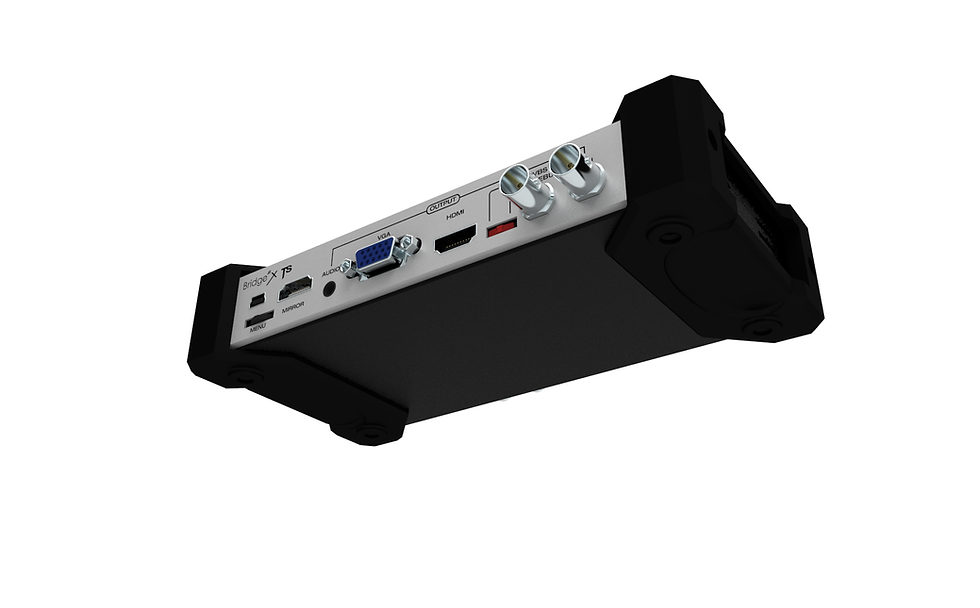

X_TS PACK V3 - Overview

The Digital Forecast X_TS Pack V3 is a Compact Multi-Platform Signal Converter with Measurement and Test Pattern Generation. The X_TS can be effectively used in installation and maintenance of video and audio signals. The X_TS is a handy but powerful series that enables you to conveniently check a variety of signals through a built-in 5 inch LCD touch screen. You can choose from video display, SDI jitter and Cable conditions.

• Specifications:

  • Operating Environment

  • Power Level: +12VDC

  • Power Consumption: 13 Watts (Maximum 15 Watts)

  • Operating Temperature: 32° to 158°F (0° to 70°C)

  • Humidity: 0 to 95% RH, Non-condensing

  • Case Dimensions: 11.92 x 10.51 x 4.57" (303 x 267 x 116mm)

  • Total Weight: 5.29Lbs (2.4kg) Video Standards

  • Supports HDMI v1.3

  • Supports VGA, Comp, CVBS format

  • Supports multi-rate SDI formats

  • SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)

  • SMPTE 296M: 720p (60/59.94/50)

  • SMPTE-274M: 1080i (60/59.94/50)

  • SMPTE-292M: 1080p (30/29.97/25/24/23.98)

  • SMPTE-424M: 1080p (60/59.94/50) 3G  LCD Specification

  • Size: 5"

  • Resolution: 800 x 480

  • Pixel Area WxH: 0.135 x 0.132mm

  • Display Area WxH: 108 x 64.8mm



• Item Includes:

  • 1x X_TS main body

  • 1x Side bumper set

  • 1x Power adapter

  • 1x Sony battery plate

  • 1x Component to VGA adapter

  • 1x Stereo RCA to 3.5mm adapter

  • 1x HDMI cable

  • 1x BNC SDI cable

  • 1x Hard shell case
